Processing facility.
Up to 1,200 barrels a day.

United reclaims crude oil and condensate from high BS&W streams, 7 days a week.

Processing capability

  • Centrifuge, de-hydrators, and chemical treatment capability to recover products.
  • Boilers, mix tanks, and insulated tanks on-site.
  • 7,500 square foot warehouse for storage and 12,000 feet of concrete containment.
  • 9,000 gallon heated drop pit with mixing stingers (sludge processing).
  • Onsite frac tank and mud tank wash service available.
  • United reclaims crude oil and condensate from high BS&W streams.
  • United has the capacity to handle up to 1200 bbls per day, 7 days a week.
Request a quote

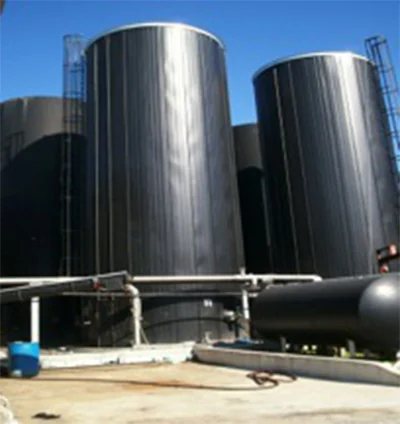

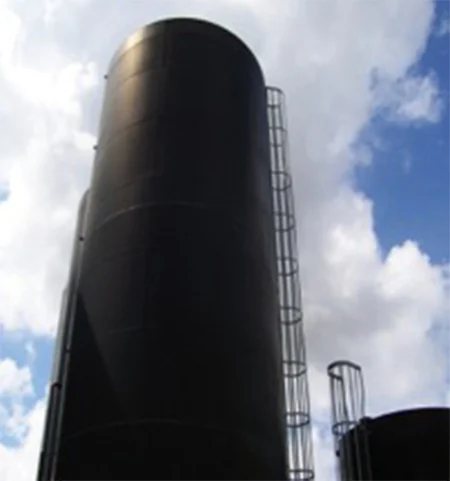

Black storage tanks and piping at the plantA tall black storage tank with a caged ladder

How crude oil is reclaimed at the plant

Trucks bring in liquids and sludge. Sludge goes through the process sump and liquids are pumped straight to the storage tank. From there the material is heated in a process tank and run through a separator. Out come crude oil, water and solids.

Liquids and sludges Over 30% recoverable oil LiquidsSludges Process sump Storage tank M Process tank Gas-fired hot oil heater Separator Crude oil SolidsE&P solids disposal WaterSalt water disposal

Swipe sideways to see the whole drawing.

  • Loading and unloading. Liquids and sludges with over 30% recoverable oil arrive by truck. Sludges go into the process sump; liquids are pumped straight to the storage tank.
  • Storage and process tanks. Pumped to storage, then heated in the process tank by the gas-fired hot oil heater.
  • Separator. Crude oil out. Solids to E&P solids disposal. Water to salt water disposal.
From the truck to three processed streams: crude oil, water to salt water disposal, solids to E&P solids disposal.

The plant

1,200bbl/dayProcessing capacity a day, 7 days a week
9,000galHeated drop pit with mixing stingers
7,500sq ftWarehouse for storage
12,000ftConcrete containment
Concrete containment Storage tanks Process area Centrifuge De-hydrators Chemical treatment Boilers, mix and insulated tanks Heated drop pit Frac and mud tank wash Warehouse 1 2 3 4 5 6 7 8

Swipe sideways to see the whole plan.

An illustration of the equipment listed above, not a plant drawing. Positions, sizes and the number of tanks are illustrative.

  1. Truck receivingMaterial arrives by truck.
  2. Storage tanksUnited-owned storage on site.
  3. Centrifuge, de-hydrators and chemical treatmentCapability to recover products.
  4. Concrete containment12,000 feet of concrete containment.
  5. Boilers, mix tanks and insulated tanksOn site.
  6. Heated drop pit9,000 gallons with mixing stingers for sludge processing.
  7. Frac tank and mud tank washOnsite wash service available.
  8. Warehouse7,500 square feet of storage.
